ZOOM TKL DYNA Frosted Clear
Keyboard Layout : 80%
Finish Treatment : Anodized/Acustatic/Electrophoresis
Typing Angle : 6.7°
Front Height : 18mm
Case Material : 6063 Aluminum
Mounting System :
Top MountingSplit ; O-Ring MountingElastic ; Bar Silicone Mounting ; Silica Gel Particle Mounting
PCB : 1.2mm/1.6mm Tri-mode
Battery Capacity : 4000mAh*2
Default Plate : Copper/Aluminium/Carbon Fibre/Fr4/PC/POM
Connection Methods : USB/BLE/2.4G
Latency Data (wireless and wired) :
USB：0.6ms
BLE：8ms
2.4G：1.1ms
Bluetooth Version : BLE5.4
Bluetooth PCB Polling Rate : 133Hz
2.4GHz Polling Rate : 4KHz
Wired Polling Rate : 8KHz
Supported Layouts : ANSI, ISO
VIA Support : Yes
RGB Support : Yes
Hotswap Support : Yes
OS Compatibility : Win/Mac/Linux/Android
Dimensions : 356.5*139*34.2mm
GB Time: June 3 - June 17
Estimated delivery time: July
- There will be a 4% fee on order cancellations and refunds after placing an order. Your payment method will be charged as soon as you place the order. There are no refunds or cancellation after the group buy ends.
- Since there are so many variations, images provided on the product page are renders or prototypes and are for display purposes only. Please also refer to the prototype's video as a reference before purchasing.
- ZOOM TKL DYNA Quality Disclaimer
Add Ons
Front-Rear Design Harmony
- The diamond-pattern grille lighting on the front perfectly complements the rear design, delivering futuristic aesthetics.
- The back retains TIGA series’ signature grille design, through multiple adjustments to retain a retro style while incorporating unique personality, with clean and orderly grid lines.
- The four-dimensional light domain at the bottom echoes the diamond-patterned ambient light on the top case, enabling unified control over effects and colors. In low-light settings, the dual illumination creates a dynamic “light warrior” effect.
Extreme Contrast Aesthetics
- After 20+ optimizations based on user feedback, DYNA achieves a smooth-edged profile that enhances ergonomic comfort.
- Sharply contrasts with the top case’s soft curves, amplifying visual hierarchy while achieving a sleeker profile.
Upgraded Screen + Knob Combo
Our newly upgraded modular design features a pogo-pin-integrated screen and introduces innovative hot-swappable technology for the knob, eliminating the need for replacement modules to deliver a more seamless user experience. The knob’s ripple-textured surface not only ensures anti-slip grip but also enhances its futuristic aesthetic.
8K Polling Rate
DYNA adopts an 8K polling rate this time, with extremely low latency, measured at just 0.6ms (tested), ensuring a better gaming experience in FPS games. In the future, we will also launch a magnetic switch edition in collaboration with Star Flash, bringing the latest magnetic switch solution.
One Keyboard, Infinite Configurations
DYNA shatters limits with flexible screen/knob layouts:
Full Keys (No Screen/Knob)
Knob + Two-keys
Screen + Single Key
Premium Acoustic & Tactile Experience
The design of DYNA fully carries forward the advantages of TIGA, ensuring optimal performance in both sound and tactile feedback to meet the preferences of different users.
4 Mounting Systems
Top Mounting
Split O-Ring Mounting
Elastic Bar Silicone Mounting
Silica Gel Particle Mounting
Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile it makes it the perfect option for office use.
This cork layer delivers a crisper sound, providing a distinctive typing experience unlike anything else on the market.
Classic Foam evolves in character over time, beginning with a bright tone that gradually mellows with use.
Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile it makes it the perfect option for office use.
This cork layer delivers a crisper sound, providing a distinctive typing experience unlike anything else on the market.
Classic Foam evolves in character over time, beginning with a bright tone that gradually mellows with use.
15 Signature Colorways
This release introduces three new colors—Eggplant Purple, Bavarois, and the Frosted Clear. Among these, the PC Edition stands out for its elegant yet powerful aesthetic.
Layout
Dimensions

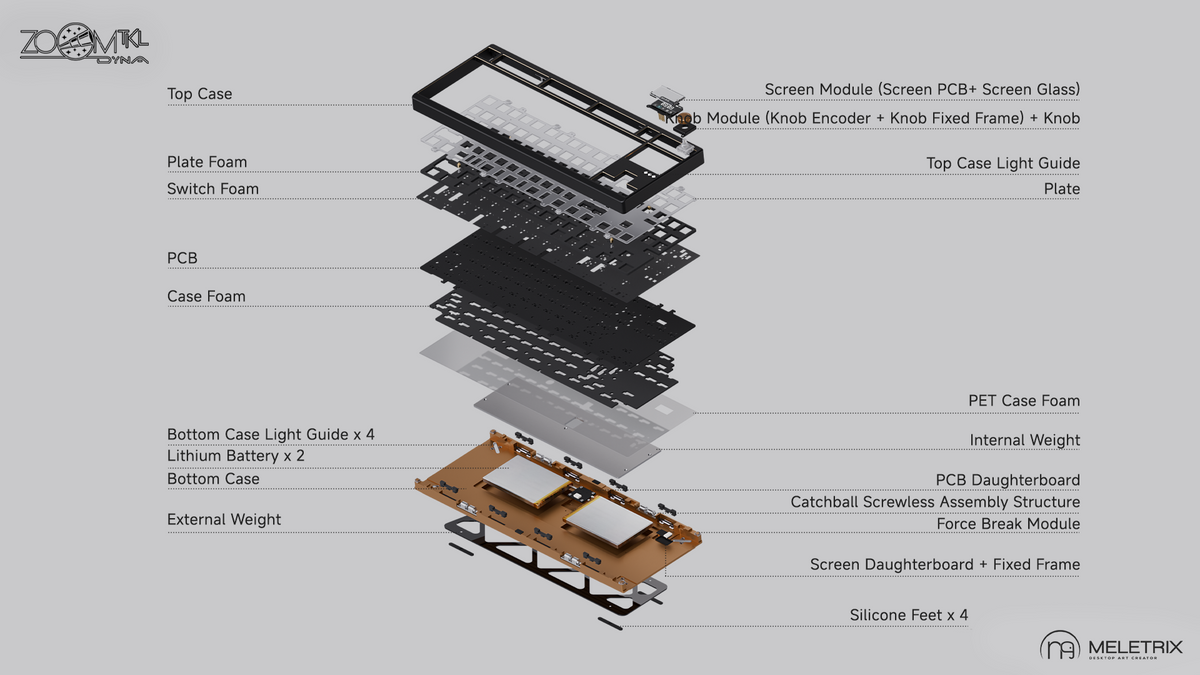

Exploded View
ZOOM TKL DYNA Kit Contents
